30-Gallon Electric Short Water Heater Service — Plant City, FL (Completed August 2025)
As the on-site plumber, I was called to investigate multiple issues and complete a 30-gallon electric short water heater service. I began with a full safety check—verifying the breaker, shut-off valve, and T&P relief valve—then confirmed proper bonding/grounding and inspected existing supply lines for corrosion before proceeding.
The home had a leaking shower head and a diverter valve that wasn’t fully redirecting flow. I isolated the fixtures, removed mineral scale at the threads, re-sealed with PTFE (Teflon) tape, and evaluated the tub spout/diverter assembly for wear. Where parts showed play or sticking, I recommended replacement to restore reliable switching from tub spout to shower head.
I also found the hot water temperature above 120°F. To prevent scalding and improve efficiency, I adjusted the thermostat on the electric unit, verified output with a thermometer at a nearby fixture, and documented the set-point. The overflow/drip pan under the tank was damaged, so I noted replacement with a pan tied into a proper drain line to help protect the space from future leaks.
Finally, a sewer camera inspection revealed a sag (“belly”) in a run of the building drain with standing water. While waste was moving at the time of inspection, I advised correction to restore the required slope, reduce debris accumulation, and minimize the risk of clogs or backups at the cleanout.

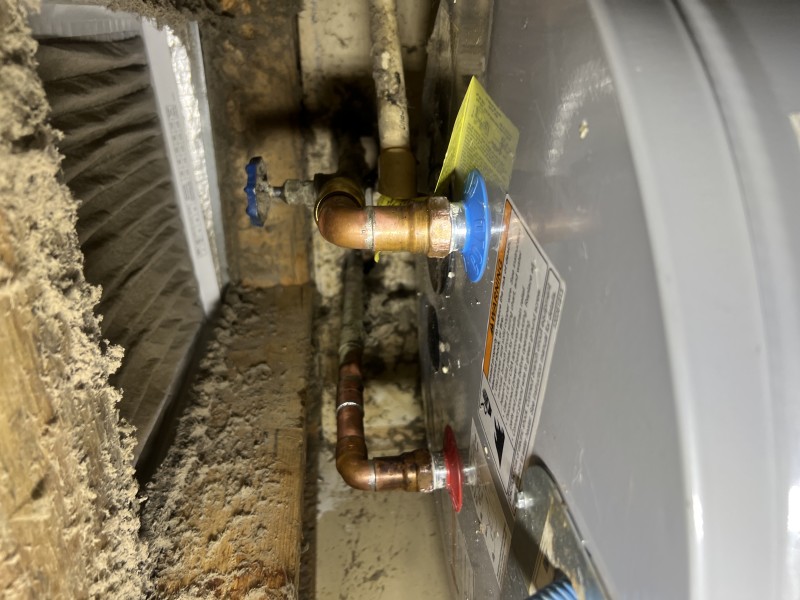

Water Heater Label & Prep
The GE SmartWater label shows key specs for the 30-gallon electric short water heater. Before install, I confirmed voltage, safety features, and prepared all fittings.

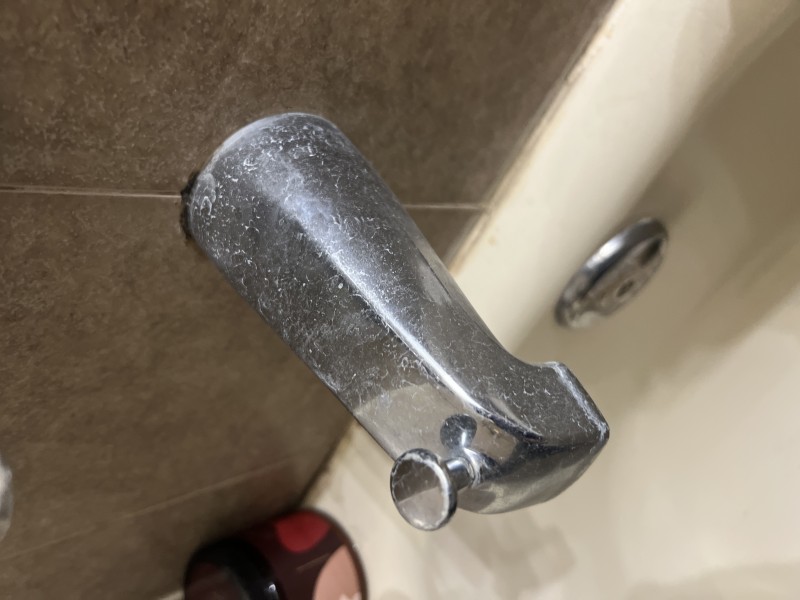

Fixing a Leaking Tub Connection
This tub spout connection was leaking at the threads. I cleaned mineral buildup, applied PTFE tape, and snugged it down to stop the fixture leak.

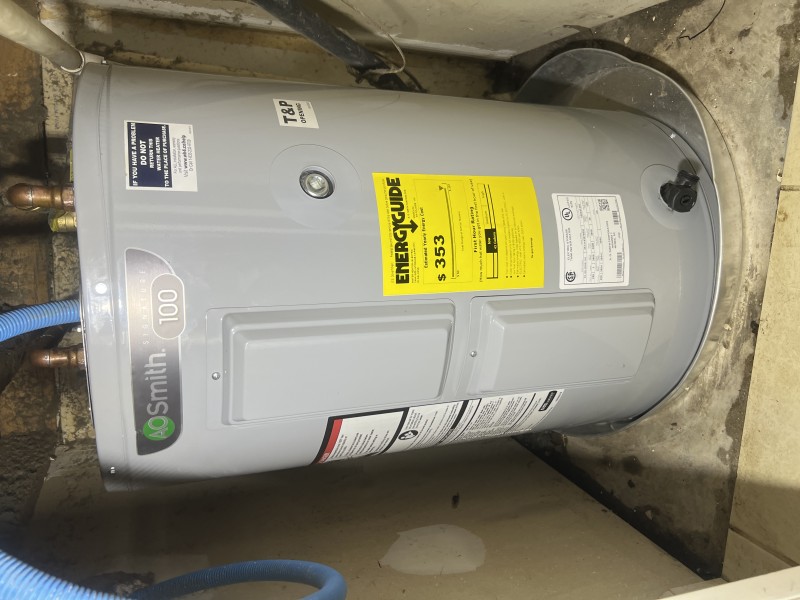

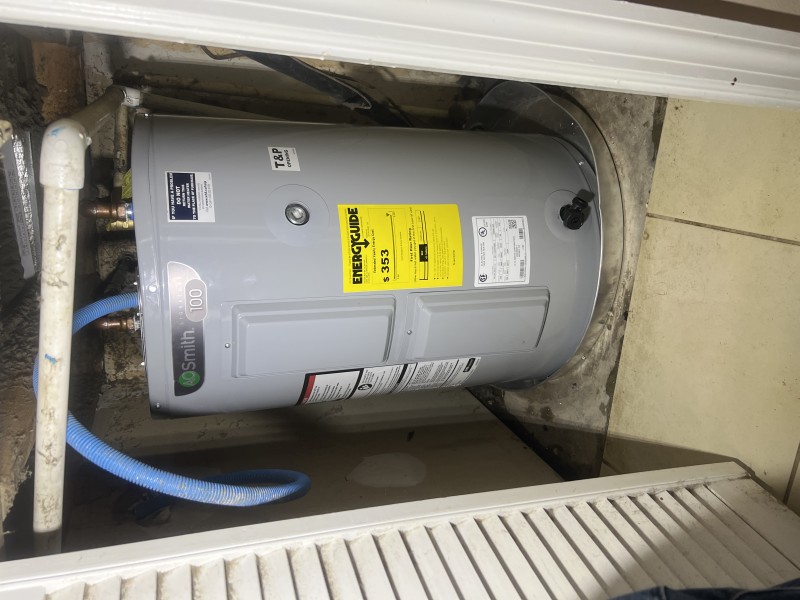

New Water Heater Installed
Here is the newly installed 30-gallon electric short water heater. Compact, efficient, and fitted securely in the utility space.
Thermostat Adjustment
The water heater was running hot. I lowered the thermostat setting to below 120°F for safety and energy efficiency.
Overflow Pan Replacement
The old overflow pan was damaged. I installed a new drain pan with piping to protect against leaks and potential water damage.

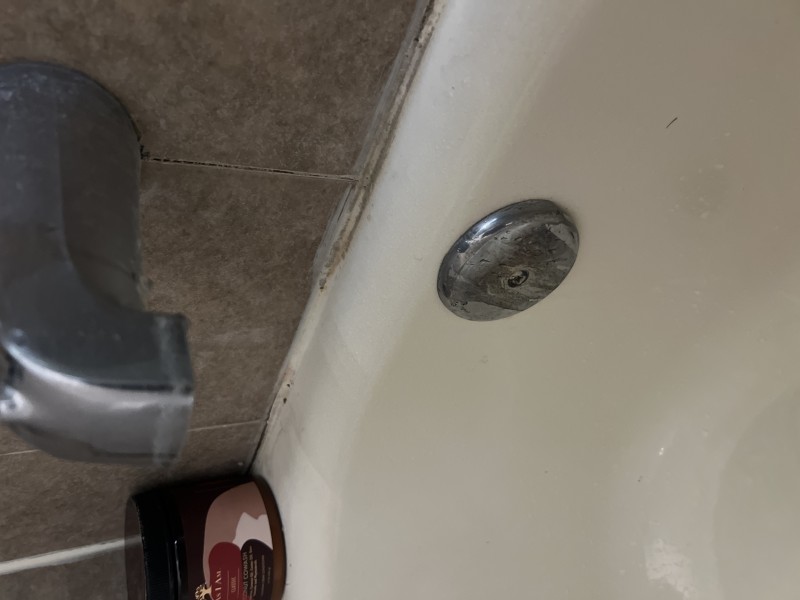

Shower Diverter Issue
The diverter was not redirecting water fully to the shower head. I tested and recommended replacing the worn part to restore proper tub-to-shower flow.
