Downstairs Toilet Water Line Reroute After Slab Leak Detection in Tampa, FL
This plumbing repair in Tampa, Florida was completed in March 2026 after identifying a leak beneath the slab affecting a downstairs toilet. Slab leaks can be difficult to locate since they occur below the concrete foundation, so the first step involved isolating the plumbing system and determining exactly which copper line was compromised.
To diagnose the issue, the plumbing manifold near the water heater was accessed and individual lines were tested. By cutting into the copper manifold and using air pressure to trace the lines, the correct branch feeding the downstairs toilet was identified. This precise plumbing diagnostic method helps avoid unnecessary demolition and allows for a targeted repair.
Once the leaking line was confirmed, the damaged copper loop beneath the slab was abandoned. Instead of breaking into the foundation, a new water supply route was created by tying into an existing cold water line serving the upper floor. This reroute restored proper water flow to the toilet while eliminating the risk from the leaking underground pipe.
This non-invasive plumbing solution is ideal for slab leaks, as it minimizes structural disruption while delivering a long-lasting repair. With proper pipe cutting, secure fittings, and careful routing, the system was restored with improved reliability and performance.

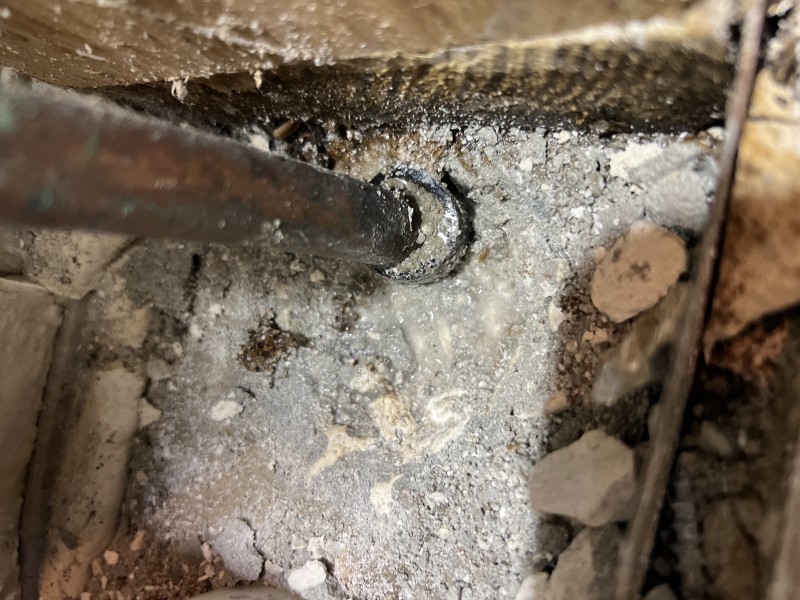

Leak Area at Slab Level
This image shows the copper pipe penetrating the concrete slab where the leak was suspected. Mineral buildup and surrounding debris indicate moisture exposure, which is a common sign of a slab leak affecting a bathroom fixture line.

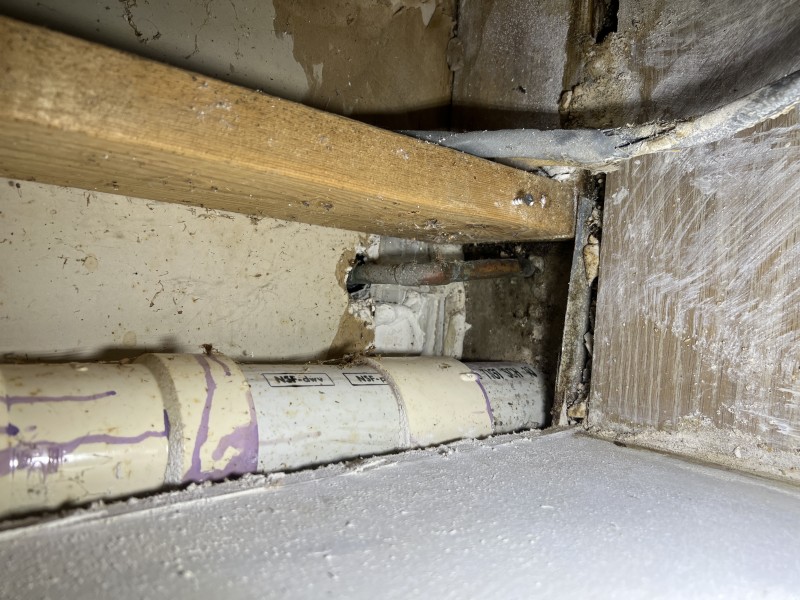

Wall Cavity Line Identification
Here the vertical piping inside the wall cavity was inspected to help trace the plumbing system layout. This step supported identifying which line connected to the downstairs toilet during the manifold diagnostic process.
Confirmed Leak Point
This close-up highlights the exact section of copper piping where the leak was located under the slab. The condition of the pipe and surrounding material confirmed the need to abandon this section and reroute the water line.

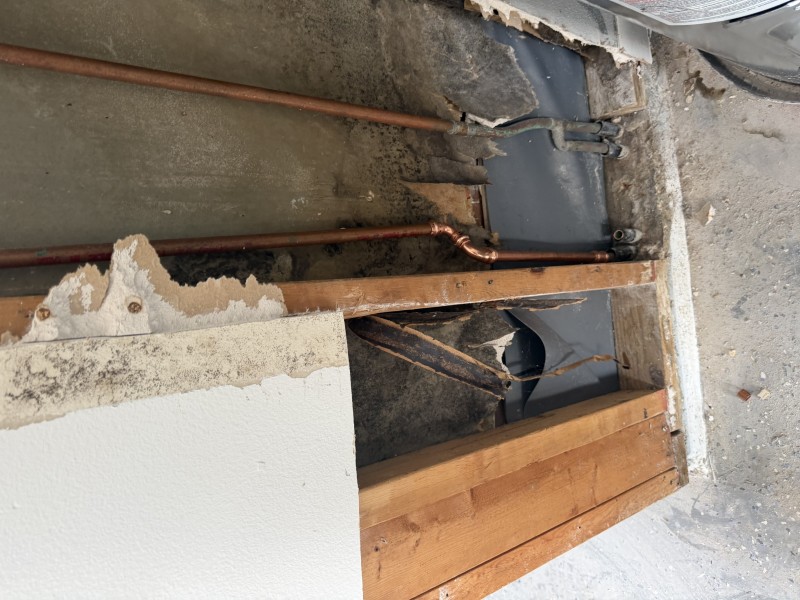

New Line Routing Through Wall
This image shows the newly installed copper line routed through the wall instead of under the slab. This approach avoids further foundation damage and provides a more accessible and serviceable plumbing configuration.

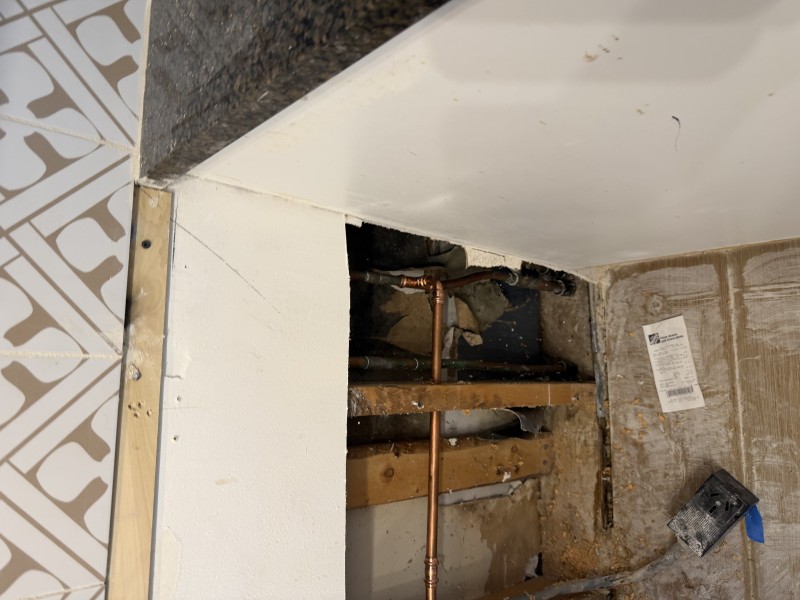

Reroute Path Installation
This stage shows the routing path being completed inside the wall cavity. The plumbing was carefully positioned and secured to ensure proper flow, stability, and long-term durability for the toilet supply line.

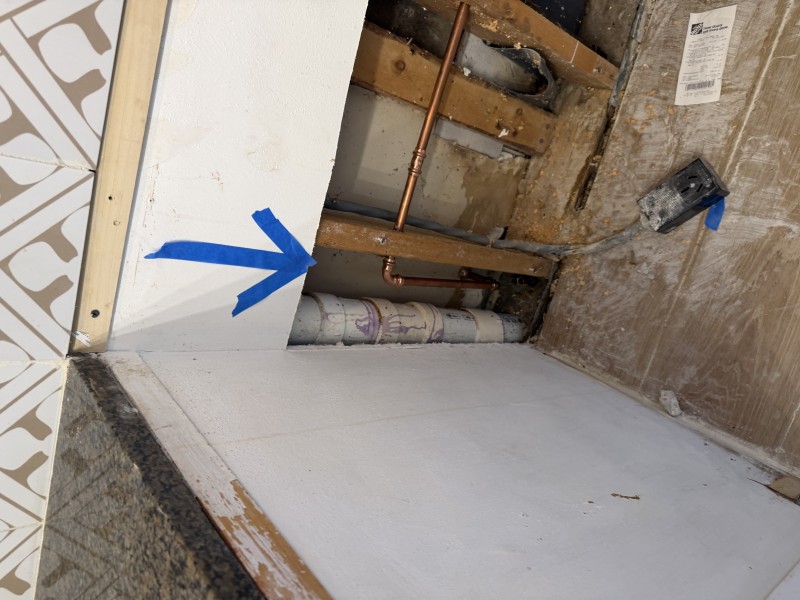

Completed Reroute with Supply Direction
The final image shows the completed reroute with a visual indicator marking the new water supply path. The damaged slab line has been successfully bypassed, restoring reliable water service to the downstairs toilet.
