Assessing the Pedicure Station Plumbing Scope

When we arrived at this solo salon suite in Tampa, FL, the first thing we did was get eyes on the pedicure platform itself. The unit sat 6.5 inches off the finished floor — tight, but workable. Our job was clear: run new water supply lines and install a pedicure drain system that would properly service the new pedicure chair and basin. Before touching a single fitting, we assessed the access panels built into the sides of the platform frame. These panels are critical on jobs like this — they give you the serviceability you need down the road without tearing apart a finished installation. Good planning on the client’s part, and it made our rough-in work significantly cleaner. Any licensed plumber doing nail salon plumbing installations in Tampa knows that pre-job assessment is what separates a smooth build-out from a costly callback.

Running Hard PVC Supply Lines Under the Platform

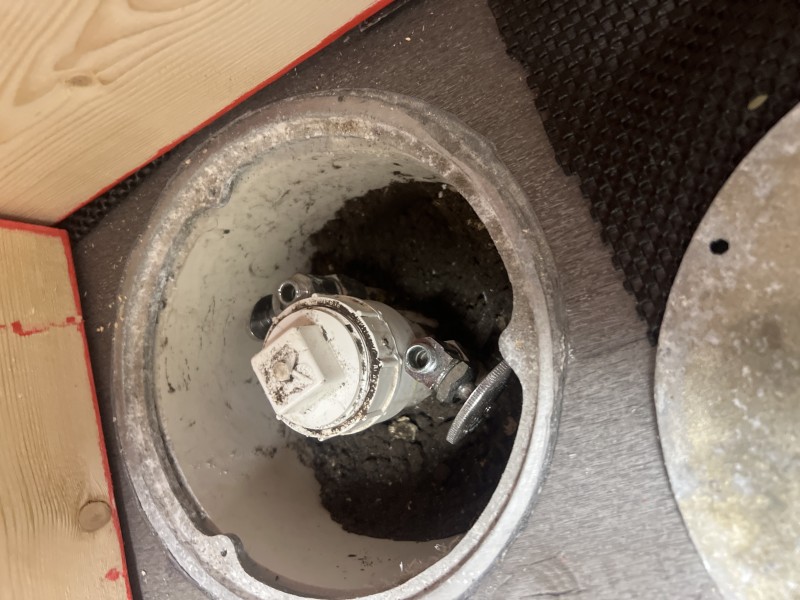

With the platform dimensions confirmed, we got to work running hard PVC water supply lines beneath the pedicure station. The client specifically requested rigid PVC over flexible braided lines — a smart call for a commercial salon environment where durability and longevity matter. We cut and dry-fit our supply runs first, ensuring proper alignment with the pedicure chair’s inlet connections before any primer or PVC cement touched the pipe. Working in a confined 6.5-inch platform depth requires precision: every measurement has to be right, and every fitting has to be oriented correctly the first time. We used a pipe cutter for clean, burr-free cuts and made sure all solvent-weld joints were primed and cemented per code. Properly installed hard PVC supply lines in a pedicure station plumbing setup like this will outlast flexible alternatives by years — especially in a high-use nail salon environment.

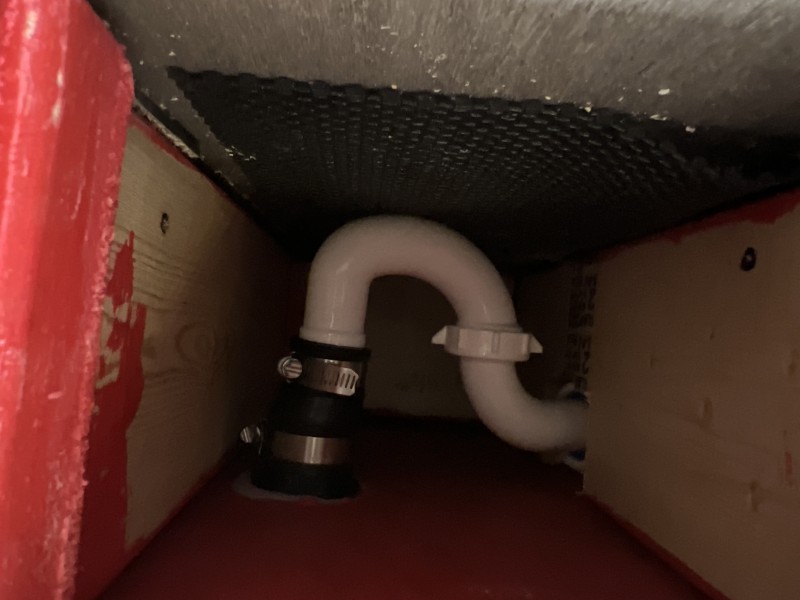

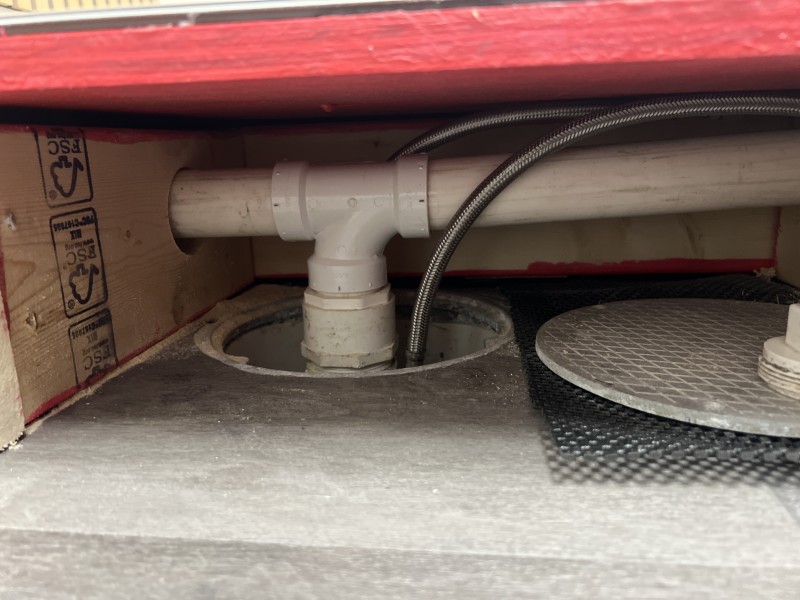

Installing the Pedicure Drain and Solving the AAV Challenge

The drain installation on this pedicure station presented the most interesting problem-solving moment of the job. With only 6.5 inches of platform depth to work with, there simply wasn’t enough vertical clearance to vent the pedicure drain through the platform using a traditional vent configuration. Our solution: an Air Admittance Valve — commonly called a Studor vent or AAV. This mechanical one-way vent device allows air into the drain system to equalize pressure and prevent trap siphoning, all without requiring a dedicated vent pipe run through the wall or ceiling. Given the depth constraints, we routed the AAV so it exits the back-left side of the platform where it remains accessible but out of the primary sightline. This is a code-compliant solution widely used in commercial plumbing applications where conventional venting isn’t feasible. The AAV keeps the pedicure drain flowing freely and the trap sealed — protecting the salon from sewer gas while keeping the installation clean and professional.

Testing, Inspection, and What Sets Quality Salon Plumbing Apart

Once all connections were made under the pedicure platform, we opened the supply valves gradually and watched every joint and fitting through the access panels. We ran both hot and cold water through the faucet, checked the pedicure drain for proper flow rate, and observed the AAV to confirm it was seating and releasing correctly with each drain cycle. No leaks, no slow drain, no issues. The entire pedicure station plumbing installation — from supply rough-in to final fixture connection — was completed in a single visit in May 2026. Jobs like this are exactly why experience in commercial salon plumbing matters. Between the platform height constraints, the AAV placement, the hard PVC line requirements, and the need for accessible serviceability through the side panels, a less experienced plumber could easily overcomplicate or mishandle several phases of this work. Ultimate Plumbing Solutions LLC specializes in exactly these kinds of specialty plumbing installations across the Tampa, FL area — from nail salons and spa suites to full commercial build-outs.
